SWITCH ROCKER DPST OFF-ON IP65 ILLUMINATED AMBER
Product Code: 03-800176
Product Description:
| Switching Function |
|
OFF-ON (DPST) |
| Actuator Type |
|
Rectangular Rocker |
| Switch Color |
|
Amber (Illuminated) |
| Contact Current |
|
16 A |
| Contact Voltage |
|
250 VAC |
| Contact Configuration |
|
2 Pole Normally Open |
| Housing Material |
|
Plastic |
| Mounting Type |
|
Panel Mount |

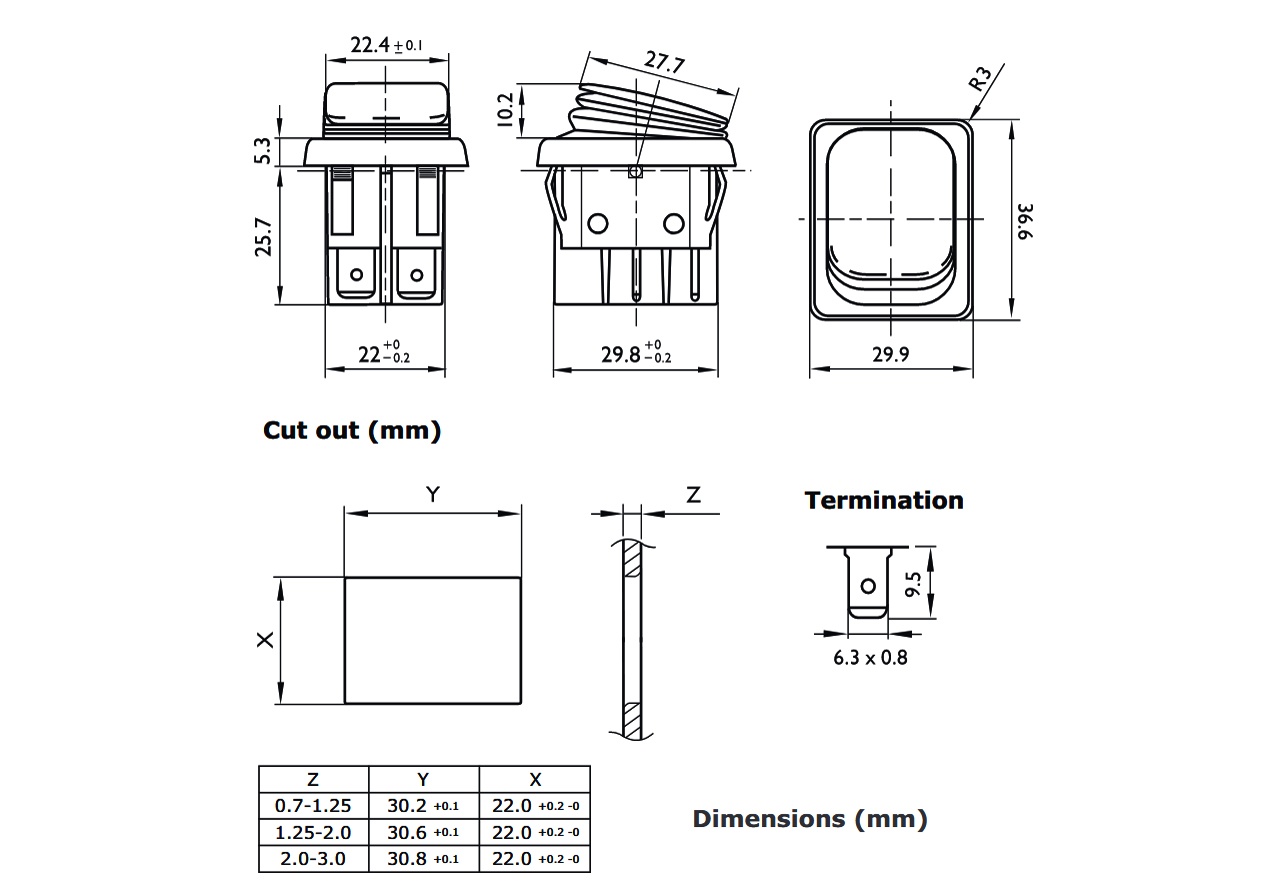

| Cut Out Size |
|
22 x 30 mm |
| Termination Type |
|
Faston Terminal, 6.3 x 0.8 mm |
| Width |
|
29.9 mm |
| Length |
|
36.6 mm |
| Height Above Panel |
|
15.5 mm |
| Depth Behind Panel max |
|
25.7 mm |
| Protection Rating |
|
IP65 |
| Manufacturer |
|
Everel |
| Manufacturer Part Number |
|
B4MASK48E1A0000 |
