Product Description:
Combines negative and positive buses on one block.
|
Maximum Voltage
|
|
300V AC / 48V DC
|
| Number of Screw Terminals |
|
5 per bus |
| Terminal Type |
|
#8-32 Screw |
| Continuous Rating ** |
|
100A |
| Base Material |
|
UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material |
|
Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque |
|
1.69 Nm |

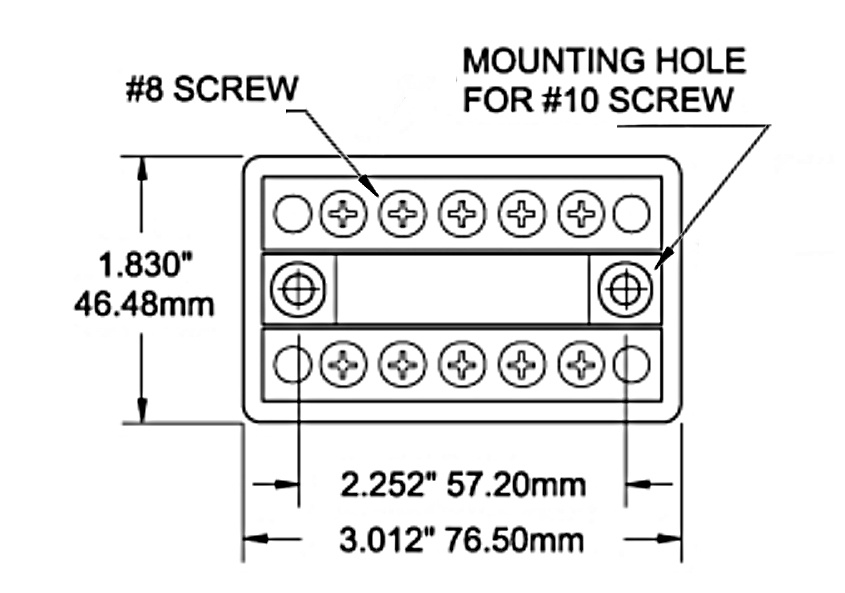

| Dimensions (L x W x H) |
|
76.5 x 46.48 x 15.88 mm |
| Weight |
|
0.08 kg |
| Suitable cover |
|
BS2709 |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
2701 |
** The maximum current a switch is designed to conduct for an indefinite period.
