Product Description:
Common busbar with 4 stud terminals.
|
Maximum Voltage
|
|
300V AC / 48V DC
|
| Number of Terminal Studs |
|
4 |
| Terminal Type |
|
#10-32 Stud |
| Continuous Rating ** |
|
100A |
| Base Material |
|
Reinforced Polycarbonate |
| Bus Material |
|
Tin-Plated Copper CDA 110/ UNS11000 |
| Cover Material |
|
Clear Polycarbonate |
| Screw Terminal Torque |
|
1.69 Nm |

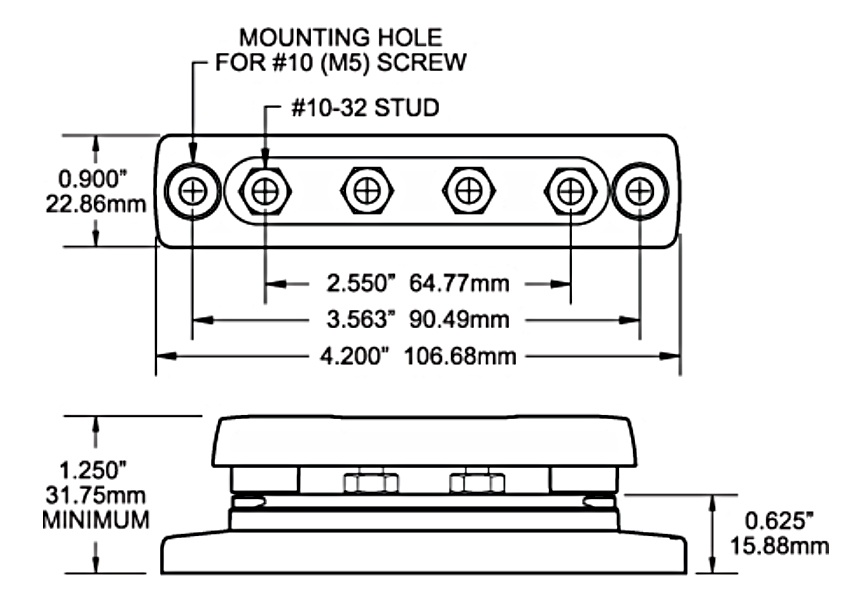

| Dimensions (L x W x H) |
|
106.68 x 22.86 x 31.75 mm |
| Weight |
|
0.08 kg |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
2315 |
** The maximum current a switch is designed to conduct for an indefinite period.
