Product Description:
Suitable for applications where a lack of space is an issue.
| Maximum Voltage |
|
48V DC |
| Number of Screw Terminals |
|
6 |
| Terminal Type |
|
#8-32 Screw |
| Continuous Rating ** |
|
100A DC |
| Bus Material |
|
Tin-Plated Copper CDA 110/ UNS11000 |
| Screw Terminal Torque |
|
1.69 Nm |
| Weight |
|
0.05 kg |

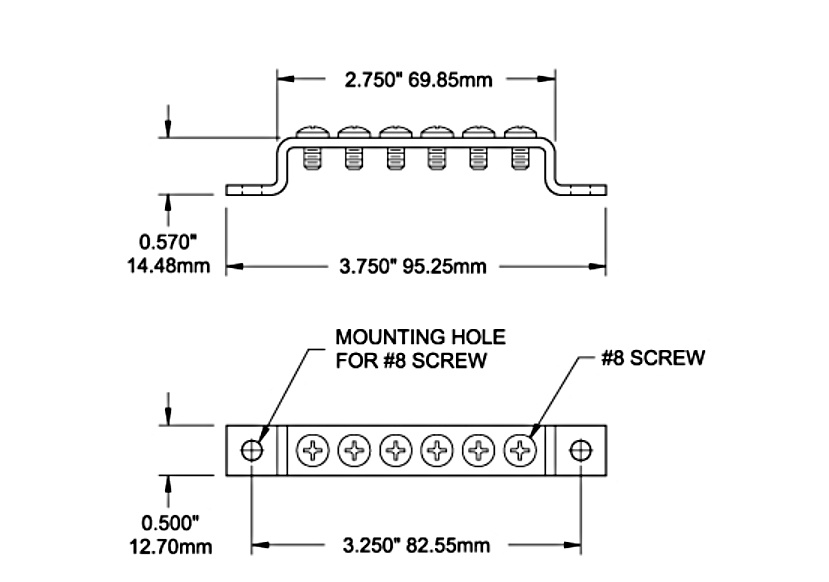

| Dimensions (L x W x H) |
|
95.25 x 12.7 x 14.48mm |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
2306 |
** The maximum current a switch is designed to conduct for an indefinite period.
