Product Description:
Common busbar with 10 screw terminals.
|
Maximum Voltage
|
|
300V AC / 48V DC
|
| Number of Screw Terminals |
|
10 |
| Number of Terminal Studs |
|
2 |
|
Terminal Type
|
|
1/4" Stud & #8-32 Screw
|
| Continuous Rating ** |
|
130A AC / 150A DC |
| Base Material |
|
UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material |
|
Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material |
|
Clear Polycarbonate |
| Screw Terminal Torque |
|
1.69 Nm |
| Stud Torque |
|
6.78 Nm |
| Weight |
|
0.17 kg |

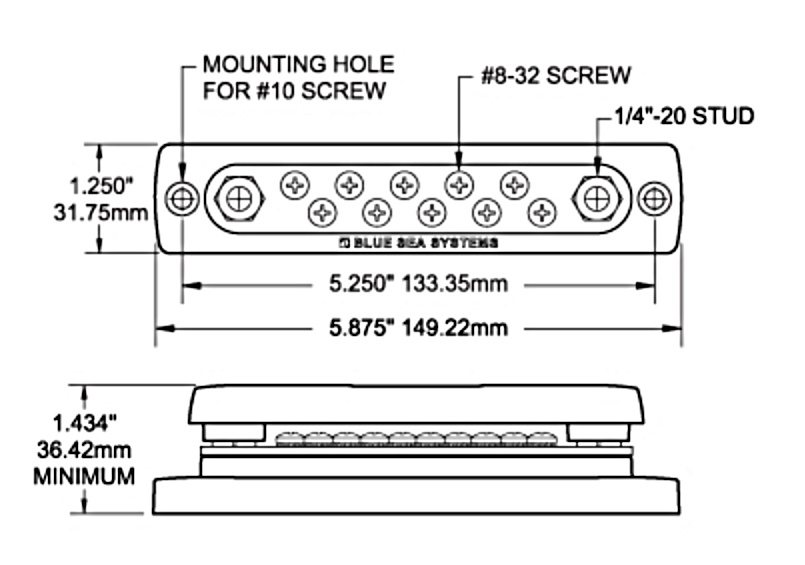

| Dimensions (L x W x H) |
|
149.22 x 31.75 x 36.42 mm |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
2300 |
** The maximum current a switch is designed to conduct for an indefinite period.
