BUSBAR COMMON 8-WAY 600A
Product Code: BS2107
Price: €180.61 (Incl Vat)
Product Description:
Common busbar with 10mm stud terminals.
|
Maximum Voltage
|
|
300V AC / 48V DC
|
| Number of Terminal Screws |
|
4 |
| Number of Terminal Studs |
|
8 |
| Terminal Type |
|
3/8"-16 Stud |
| Continuous Rating ** |
|
545A AC / 600A DC |
| Base Material |
|
UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material |
|
Tin-Plated Copper CDA 110/UNS11000 |
| Screw Terminal Torque |
|
1.69 Nm |
| Stud Torque |
|
15.82 Nm |

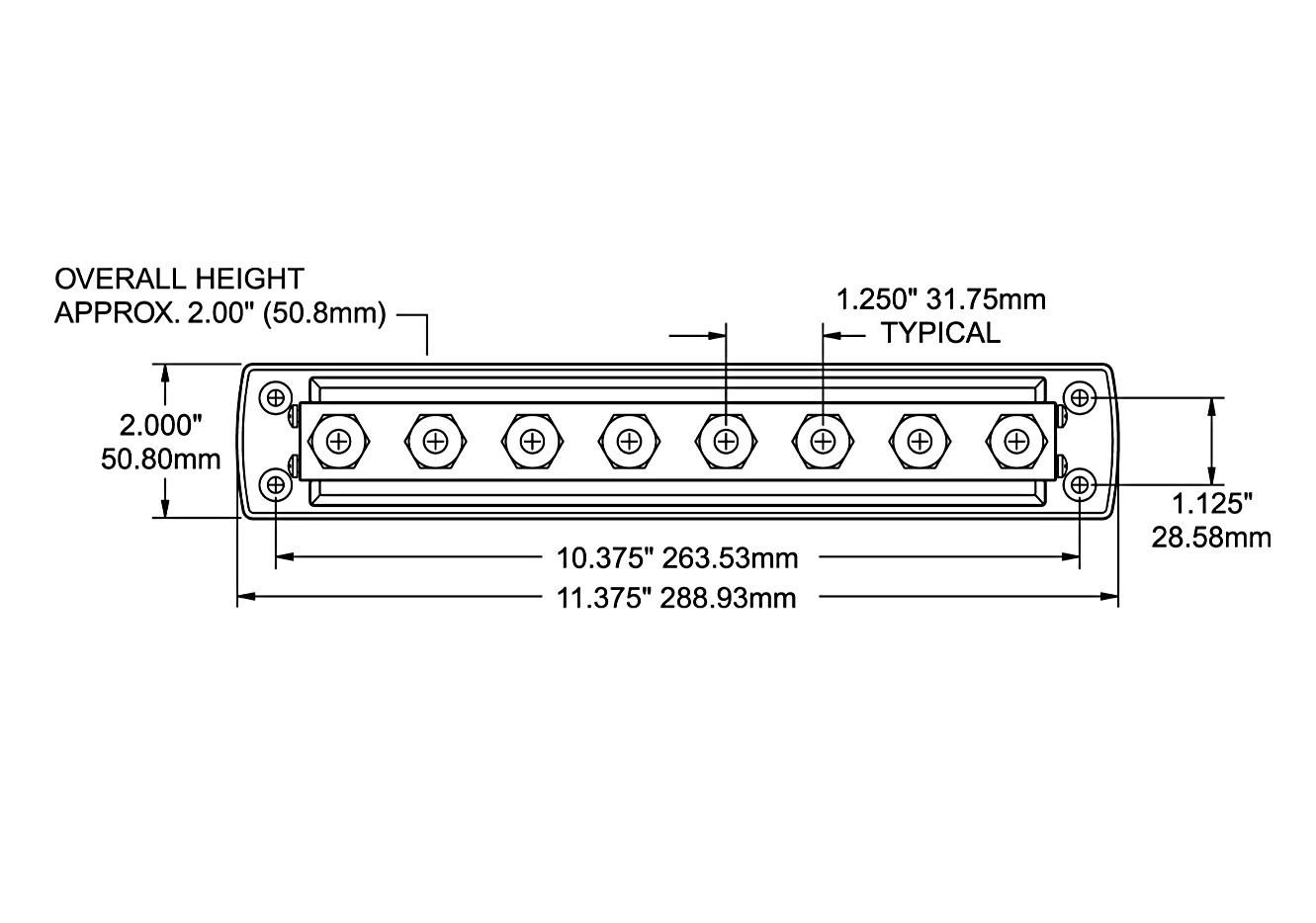

| Dimensions (L x W x H) |
|
288.93 x 50.80 x 50.80 mm |
| Weight |
|
1.25 kg |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
2107 |
** The maximum current a switch is designed to conduct for an indefinite period.
