Single pole panel mount thermal circuit breaker push to reset. Suitable for DC circuits up to 32Vdc.
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high-density circuit protection configurations
- Push-to-reset operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Ignition protected - Safe for installation aboard gasoline-powered boat.
| Circuit Breaker Type |
|
Thermal |
| Action |
|
Push to Reset only |
| Rated Current |
|
7 A |
| Operating Voltage max |
|
32 VDC |
| Interrupt Capacity ** |
|
2500 A @ 28 VDC |
| |
|
3000 A @ 14.7 VDC |
| Number of Poles |
|
1 |
| Operating Temperature |
|
-10 °C to +60 °C |

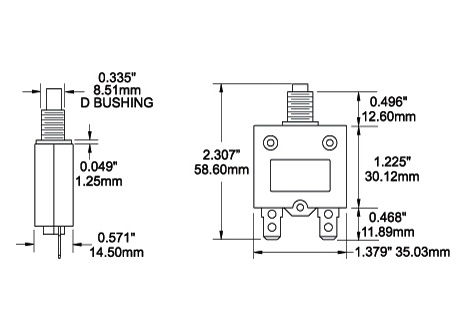

| Dimensions |
|
14.5 x 35.03 mm |
| Depth Behind Panel |
|
42 mm |
| Panel Cutout dia |
|
9 mm |
| Connection |
|
Push-on terminals |
| Mounting |
|
Panel Mount |
| Mounting Nut |
|
3/8-27 UNS |
| Weight |
|
0.03 kg |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
7053 |
** The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
Suitable splashproof cover BS4135.
