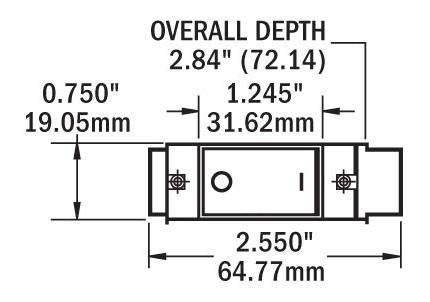

Single pole panel mount magnetic circuit breaker with a manual trip combining circuit breaker protection with switching functionality. Suitable for circuits for DC circuits up to 48Vdc.
- Rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
- Color actuator indicates an “OFF” position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free”—cannot be held closed after trip
- Ignition-protected—safe for installation aboard gasoline-powered boats
| Amperage |
|
50 A |
| Number of Poles |
|
1 |
| Actuator Style |
|
Flat Rocker |
| Operating Voltage max |
|
240 VAC, 48 VDC |
| Circuit Breaker Type |
|
Magnetic Hydraulic - trip free |
| Action |
|
Manual Reset / Disconnect |
| Interrupt Capacity ** |
|
3000A @ 120V AC |
| |
|
5000A @ 32V DC |
| Operating Temperature |
|
-40° C to +85° C |
| Terminal Stud |
|
1/4-20 Tin-Plated Brass |
| Terminal Stud Torque |
|
3.95 Nm |
| Mounting Screw |
|
6-32 Stainless Steel |
| Mounting Screw Torque |
|
0.68 Nm |
| Switching Cycles |
|
10000 |
| Weight |
|
0.16 kg |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
7546 |
** The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
