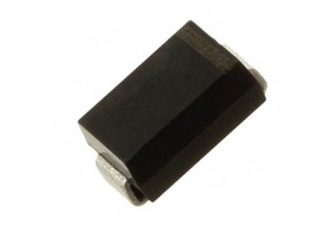

SMD FAST RECOVERY DIODE 1.5A 400V 2us S2G-E3/52T
Product Code: 22-1807097
Product Description:
| Type |
|
S2G-E3/52T |
| Configuration |
|
Single |
| Reverse Repetitive Voltage Max. (Vrrm) |
|
400 V |
| Peak Average Forward Current (If(AV)) |
|
1.5 A |
| Forward Voltage (Vf) |
|
1.15 V |
| Peak Non-Repetitive Surge Current (Itsm) |
|
50A |
| Peak Reverse Current |
|
125 uA |
| Reverse Recovery Time (trr) |
|
2 us |
| Operating Temperature |
|
-55°C to +150°C |
| Package Type |
|
DO-214AA |
| Mounting Type |
|
SMD |
| Capacitance |
|
16 pF |
| Thermal Resistance |
|
16 K/W |
| Manufacturer |
|
Vishay |
