FUSE SMD SLOW BLOW 1A 125VAC / DC
Product Code: 30-13322638
Product Description:
| Rated Current |
|
1 A |
| Voltage Rating - AC |
|
125 V |
| Voltage Rating - DC |
|
125 V |
| Breaking Capacity @ Voltage (AC) |
|
100 A |
| Breaking Capacity @ Voltage (DC) |
|
100 A |
| Fuse Characteristic |
|
Slow Blow (T) |
| Terminal Material |
|
Tin-Plated Copper |

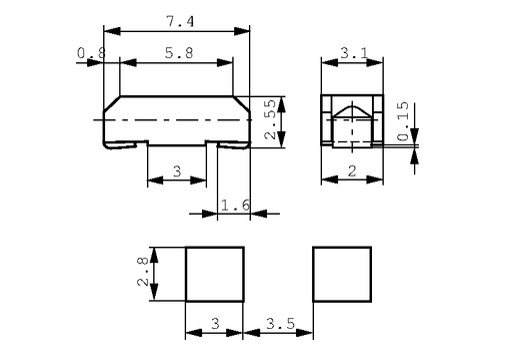

| Length |
|
7.4 mm |
| Height |
|
2.6 mm |
| Width |
|
3.1 mm |
| Housing Material |
|
Thermoplastic |
| Storage Temperature |
|
0 °C to 60 °C |
| Ambient Temperature |
|
-40 °C to +85 °C |
| Manufacturer |
|
Schurter |
| Manufacturer Part Number |
|
3404.0114.22 |
| Datasheet |
|
Available |
