Product Description:

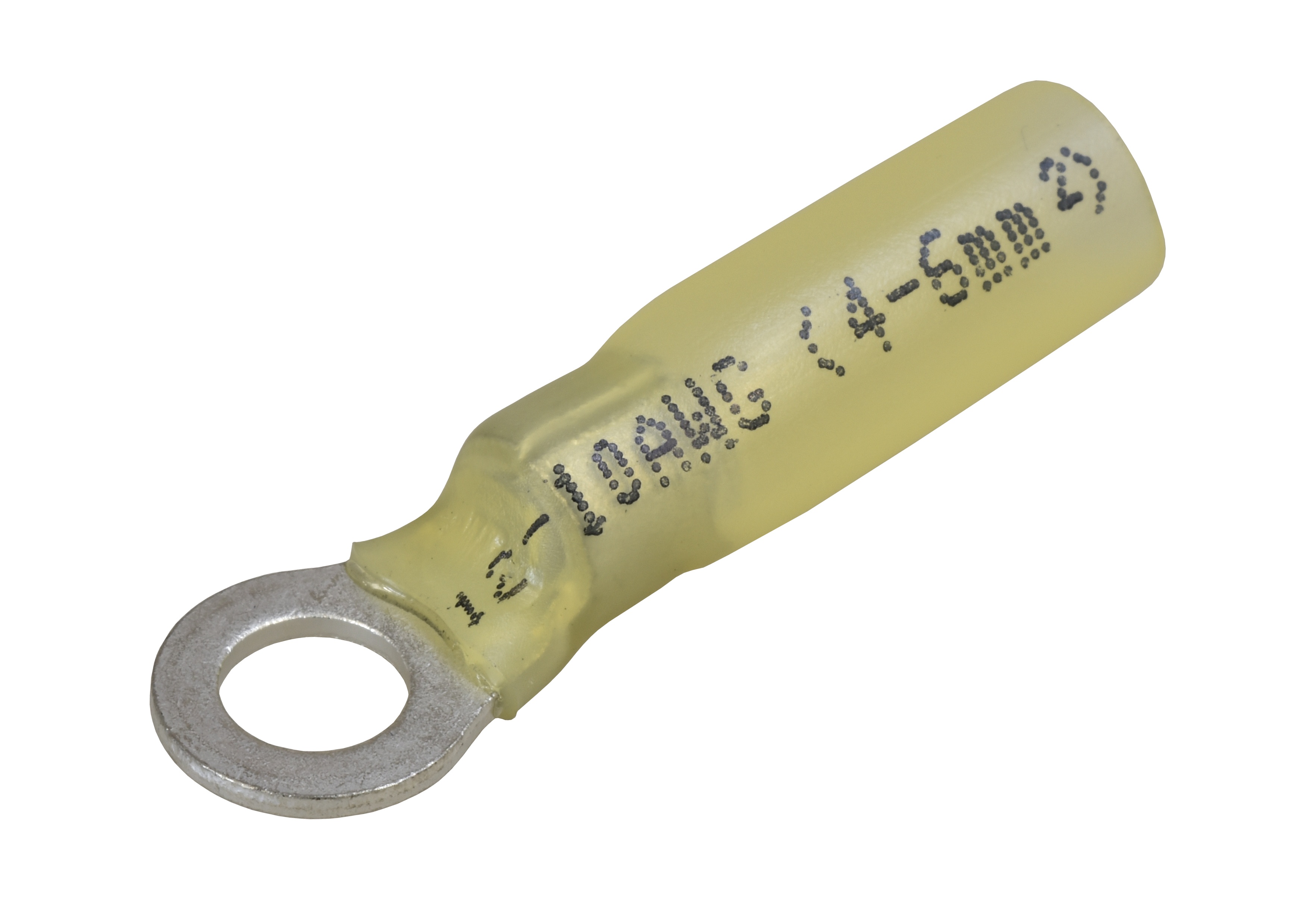

Crimp eyelet with shrinkable material that is adhesive-coated on the inside. It prevents the wire from pulling back, thus being exposed to the elements. Resistant to petrol, oil, salt water, battery acid, and cleaning agents. Suitable for cables from 4mm² to 6mm.
| Insulator Color |
|
Yellow |
| Inner Ring Diameter |
|
5.3 mm |
| Ring Depth |
|
9.5 mm |
| Cable Cross-Section |
|
4 mm² to 6 mm² |
| Length |
|
34.5 mm |
| Voltage Rating |
|
300 V |
| Operating Temperature Max. |
|
105 °C |
| Terminal Material |
|
Copper |
| Stud Size |
|
M5 |
| Manufacturer |
|
Ninigi |
| Manufacturer Part Number |
|
ST-082/Y-T |
