JST-PH HEADER 3-WAY 2.0mm
Product Code: 04-30469195
Product Description:
| Number of Positions |
|
3 |
| Number of Rows |
|
1 |
| Pitch |
|
2 mm |
| Contact Gender |
|
Plug |
| Gender |
|
Header |
| Termination Type |
|
PC-pins |
| Mounting Type |
|
Through Hole |
| Body Orientation |
|
Straight |
| Housing Material |
|
Nylon 66 |
| Combustibility Class |
|
UL 94 V-0 |
| Current Rating |
|
2 A |
| Voltage Rating |
|
100 VAC/VDC |
| Operating Temperature |
|
-25°C to +85°C |

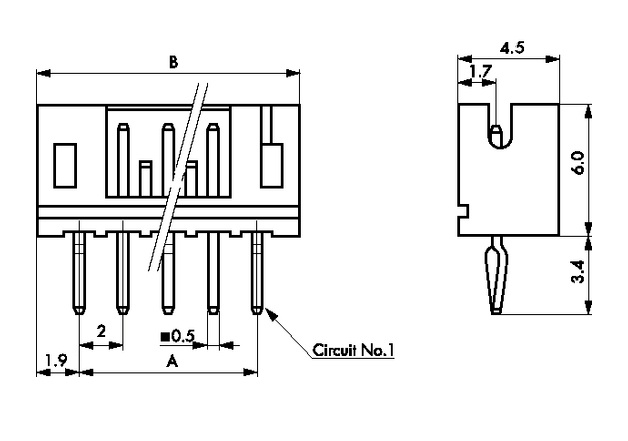

| Dimensions |
|
|
| A |
|
4.0 mm |
| B |
|
7.9 mm |
| Manufacturer Part Number |
|
B 3B-PH-K-S |
| Mates With Housing |
|
PHR-3 |
| Manufacturer |
|
JST |
| Datasheet |
|
Available |
