POTENTIOMETER WIREWOUND 10K-OHM 1W
Product Code: HS6252-10K
Product Description:
| Resistance |
|
10K Ohm |
| Tolerance |
|
5% |
| Number of turns |
|
1 |
| Angle of rotation |
|
258° +/-5° |
| Resistance curve |
|
Linear |
| Power rating |
|
1W |
| Connections |
|
Solder terminals |

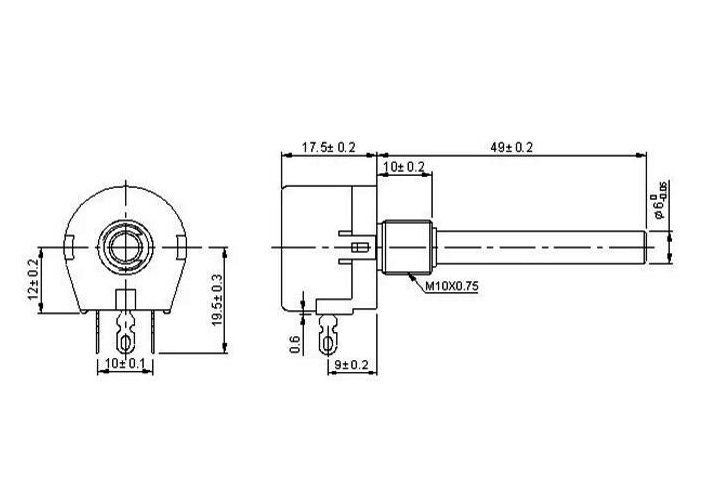

| Shaft length |
|
39mm |
| Shaft diameter |
|
6mm |
| Overall Diameter |
|
23 mm |
| Depth behind panel |
|
17.5 mm |
| Panel cutout |
|
10 mm |
| Series |
|
WX118 |
| Manufacturer |
|
Bochen |
| Datasheet |
|
Available |
