FUSE HOLDER SURFACE MOUNT MEGA / AMG FUSE STRIP 300AMP 32VDC
Product Code: BS5001
Product Description:

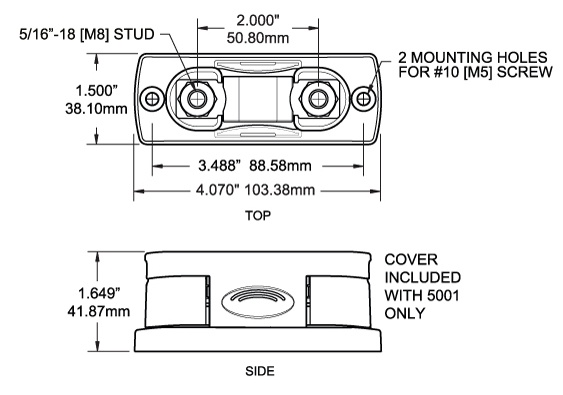

MEGA® / AMG® Fuse Block - 100-300A with Cover.
- Accepts 5/16" (M8) ring terminals
- Insulating cover satisfies ABYC/USCG insulation requirements
- Insulating cover breakouts allow wire access in three directions
- Insert molded studs ensure secure fuse mounting
- Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
- UL 94-V0 base resists high heat
- Fuse sold separately
| Maximum Voltage |
|
32 VDC |
| Stud Size |
|
5/16" |
| Base Material |
|
Reinforced PBT |
| Cover Material |
|
Polycarbonate |
| Maximum Terminal Torque |
|
110 in-lb (12.43 Nm) |
| Stud Torque |
|
120 in-lb (13.56 Nm) |
| Weight |
|
0.35lb (0.16 kg) |
