ARDUINO RGB LIGHT COLOR SENSOR MODULE GY-9960-3.3 APDS-9960 - HAITRONIC

Product Code: HS1697

Price: €6.11 (Incl Vat)


Product Description:


The GY-9960-3.3 RGB and Gesture Sensor, is a small breakout board with a built-in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. This RGB and Gesture Sensor can be included in Arduino and other microcontroller applications.

The APDS-9960 has built-in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C-compatible interface.

Features:

  • Motion Direction Recognition Module
  • RGB & Infrared Sensor
  • APDS-9960 sensor

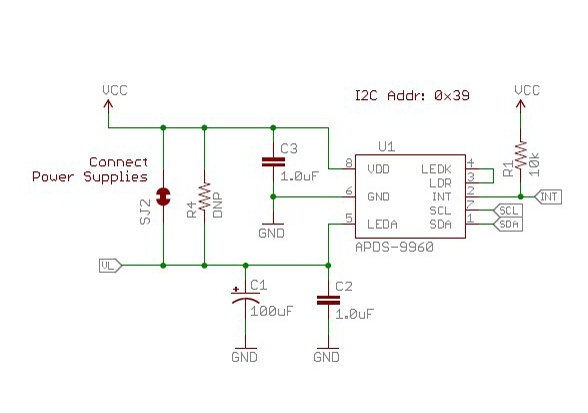

Connections
VL   Optional power to IR LED
GND   Ground
VCC   Power to APDS-9960 sensor
SDA   I2C data
SCL   I2C clock
INT   Interrupt



Specifications
Mode   GY-APDS9960-3.3
Power supply   3.3 V
Detection Range   (APDS-9960) 10 to 20 cm
Communication   IIC communication protocol
Dimensions   20 x 15.3 mm
