SMD mm TO SMD inches COMPARISON_1 (L)
Product Code: SMD CODE SIZES 1
Product Description:

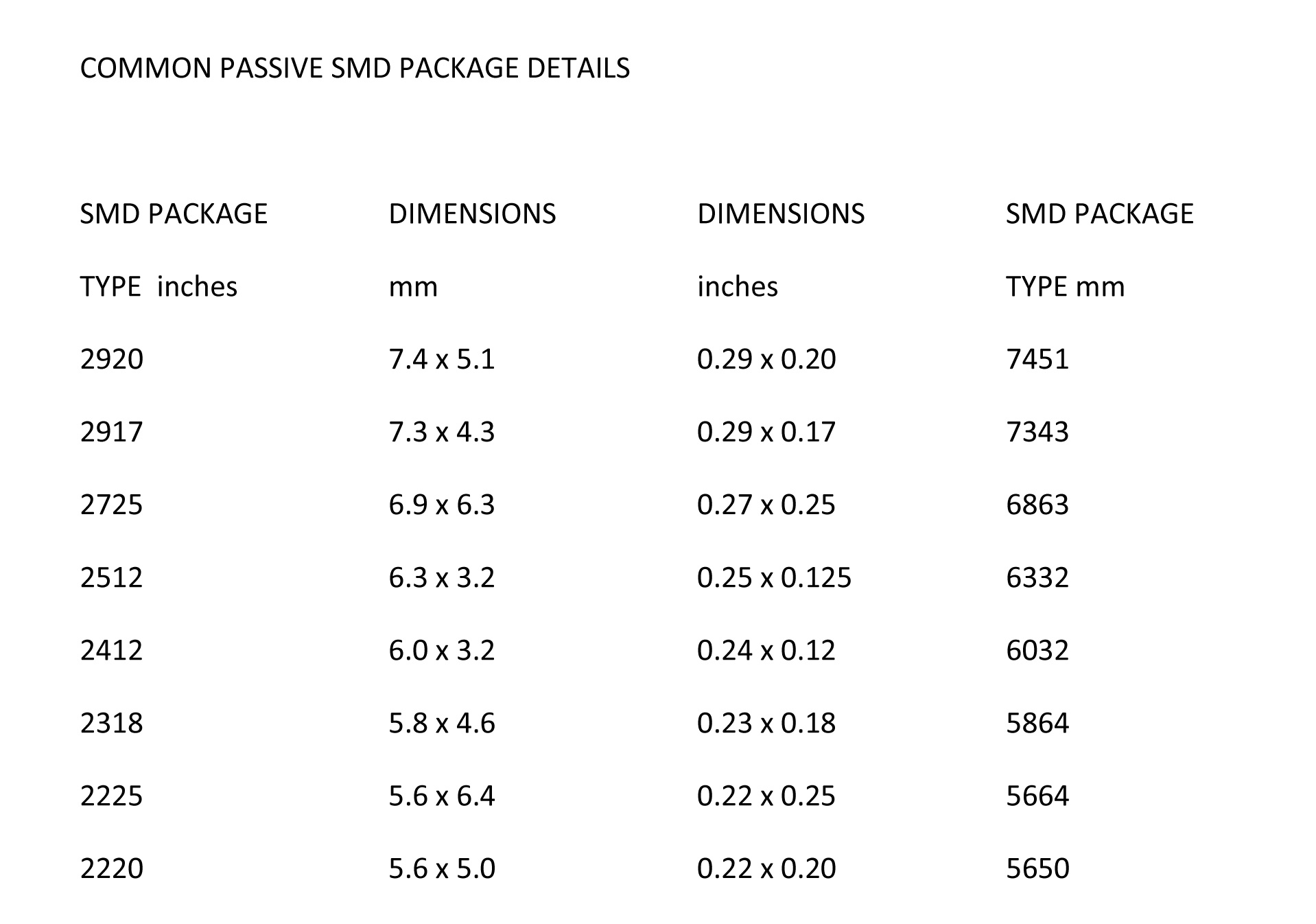

COMMON PASSIVE SMD PACKAGE DETAILS
| SMD PACKAGE |
DIMENSIONS |
DIMENSIONS |
SMD PACKAGE |
| TYPE inches |
mm |
inches |
TYPE mm |
| 2920 |
7.4 x 5.1 |
0.29 x 0.20 |
7451 |
| 2917 |
7.3 x 4.3 |
0.29 x 0.17 |
7343 |
| 2725 |
6.9 x 6.3 |
0.27 x 0.25 |
6863 |
| 2512 |
6.3 x 3.2 |
0.25 x 0.125 |
6332 |
| 2412 |
6.0 x 3.2 |
0.24 x 0.12 |
6032 |
| 2318 |
5.8 x 4.6 |
0.23 x 0.18 |
5864 |
| 2225 |
5.6 x 6.4 |
0.22 x 0.25 |
5664 |
| 2220 |
5.6 x 5.0 |
0.22 x 0.20 |
5650 |
| 2010 |
5.0 x 2.5 |
0.20 x 0.10 |
5025 |
| 1825 |
4.5 x 6.4 |
0.18 x 0.25 |
4564 |
| 1812 |
4.6 x 3.0 |
0.18 x 0.125 |
4532 |
| 1806 |
4.5 x 1.6 |
0.18 x 0.06 |
4516 |
| 1411 |
3.5 x 2.8 |
0.14 x 0.11 |
3528 |
| 1210 |
3.2 x 2.5 |
0.125 x 0.10 |
3225 |
| 1206 |
3.0 x 1.5 |
0.12 x 0.06 |
3216 |
| 1008 |
2.5 x 2.0 |
0.10 x 0.08 |
2520 |
| 0805 |
2.0 x 1.3 |
0.08 x 0.05 |
2012 |
| 0603 |
1.5 x 0.8 |
0.06 x 0.03 |
1608 |
| 0402 |
1.0 x 0.5 |
0.04 x 0.02 |
1005 |
| 0201 |
0.6 x 0.3 |
0.02 x 0.01 |
0603 |
| 01005 |
0.4 x 0.2 |
0.016 x 0.008 |
0402 |
