PANEL METER OIL TEMPERATURE 52mm WHITE
Product Code: MTL3274533
Product Description:
| Bezel diameter |
|
58mm |
| Panel cut diameter |
|
52mm |
| Panel thickness max. |
|
10mm |
| Depth behind panel |
|
55mm * |
| Backlight |
|
Yes |
| Operating voltage |
|
12 V |
| Temperature range |
|
+50 to + 150°C |
| Material |
|
High Impact ABS |
| Protection Rating |
|
|
| Meter Front |
|
IP67 |
| Meter Case |
|
IP65 |
| Installation |
|
Ring Nut |

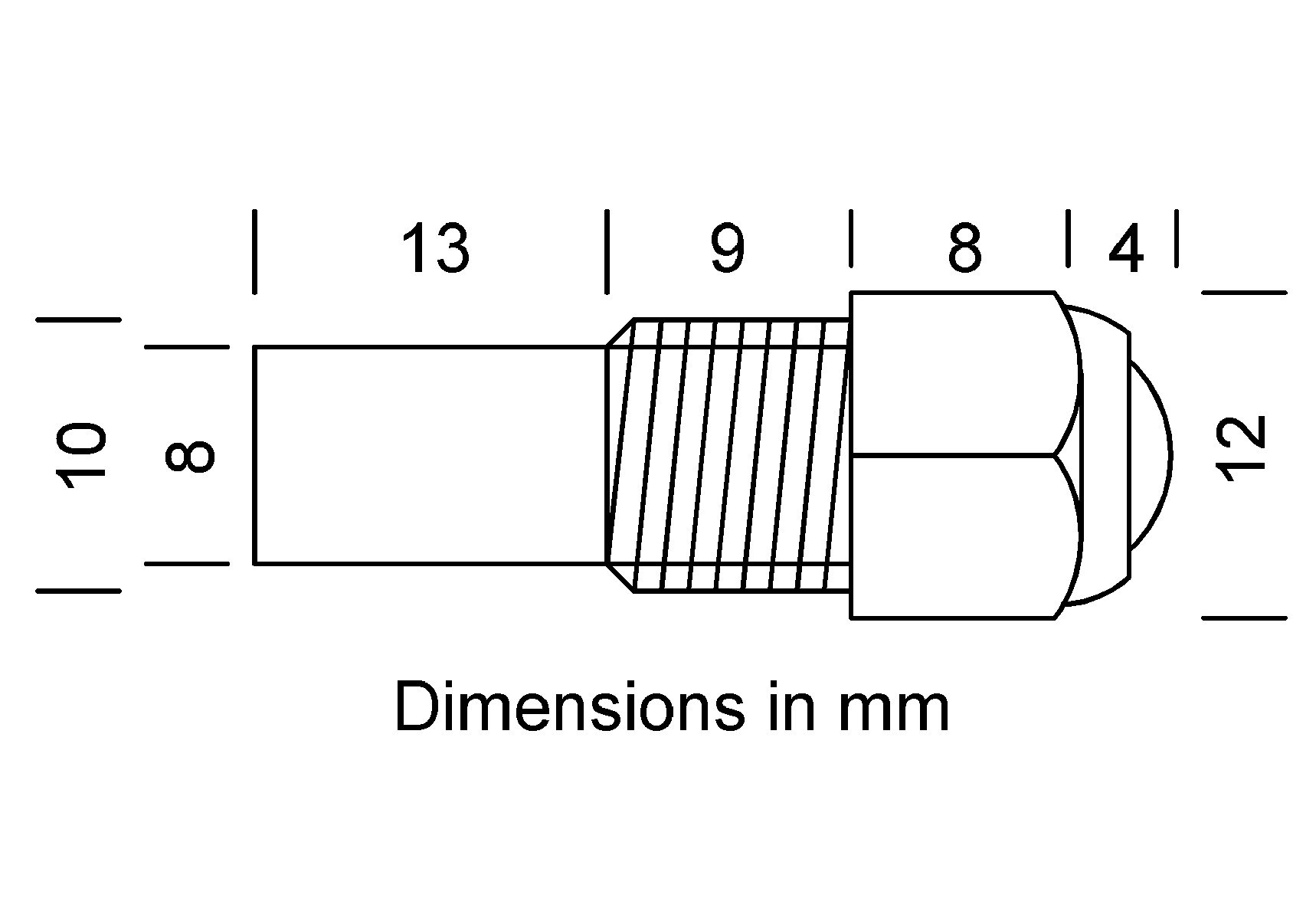

| Temperature sensor |
|
Included |
| Thread |
|
1/8” NPTF |
| Meter connections |
|
|
| Supply voltage positive |
|
' + ' |
| Supply voltage negative |
|
' - ' |
| Sensor |
|
' s ' |
| Sensor connections |
|
|
| Black cable |
|
' - ' |
| White cable |
|
' s ' |
* Not including wire & connector
