LOGIC LEVEL CONVERTER UNI-DIRECTIONAL - HAITRONIC
Product Code: HR0221
Product Description:

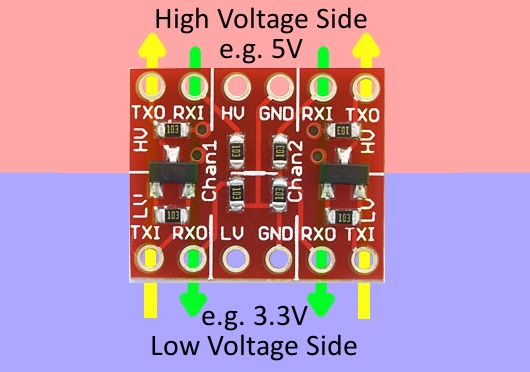

Dual 2 Channel Logic Level Converter 3.3V to 5V TTL Module For Arduino
Features:
- 2-channel uni-directional high-voltage to low-voltage converter
- 2-channel uni-directional low-voltage to high-voltage converter
- 2.54mm pin spacing for direct bread board interfacing
- HV - High voltage supply connection (5V)
- LV - Low voltage supply connection (3.3V)
- GND - Connection negative supply, Common ground
- RXI 5v TTL input - RXO 3.3v TTL output
- TXI 3.3v TTL input - TXO output 5V TTL
- Module Size: Approx. 1.5 x 1.5cm/ 0.6 x 0.6 inch
