TOROIDAL COMMON MODE CHOKE 42uH 6.5A 30% 8.1 mOhms
Product Code: 1064079
Product Description:
| Rated inductance |
|
42 µH |
| Rated current |
|
6.5A |
| Rated voltage |
|
250VAC |
| Series resistance |
|
8.1mOhm |
| tolerance |
|
±30% |
| Winding type |
|
2x |
| Temperature range |
|
-40 to +125 °C |

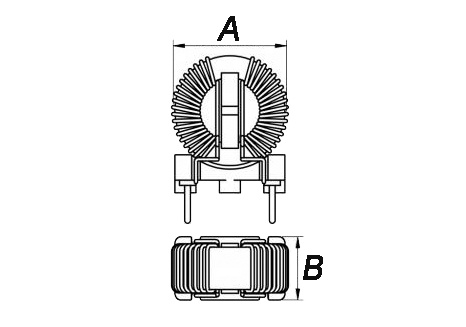

| A |
|
18.5 mm |
| B |
|
14.5 mm |
|
|
40/125/21 |
