PANEL METER WATER TEMPERATURE 52mm BLACK
Product Code: MTL3227120
Product Description:
Bezel diameter |
|
58mm |
Panel cut diameter |
|
52mm |
Panel thickness max. |
|
10mm |
Depth behind panel |
|
55mm * |
Backlight |
|
Yes |
Operating voltage |
|
12 v |
Temperature range |
|
+40 to + 120°C |
Material |
|
High Impact ABS |
Installation |
|
Locknut |

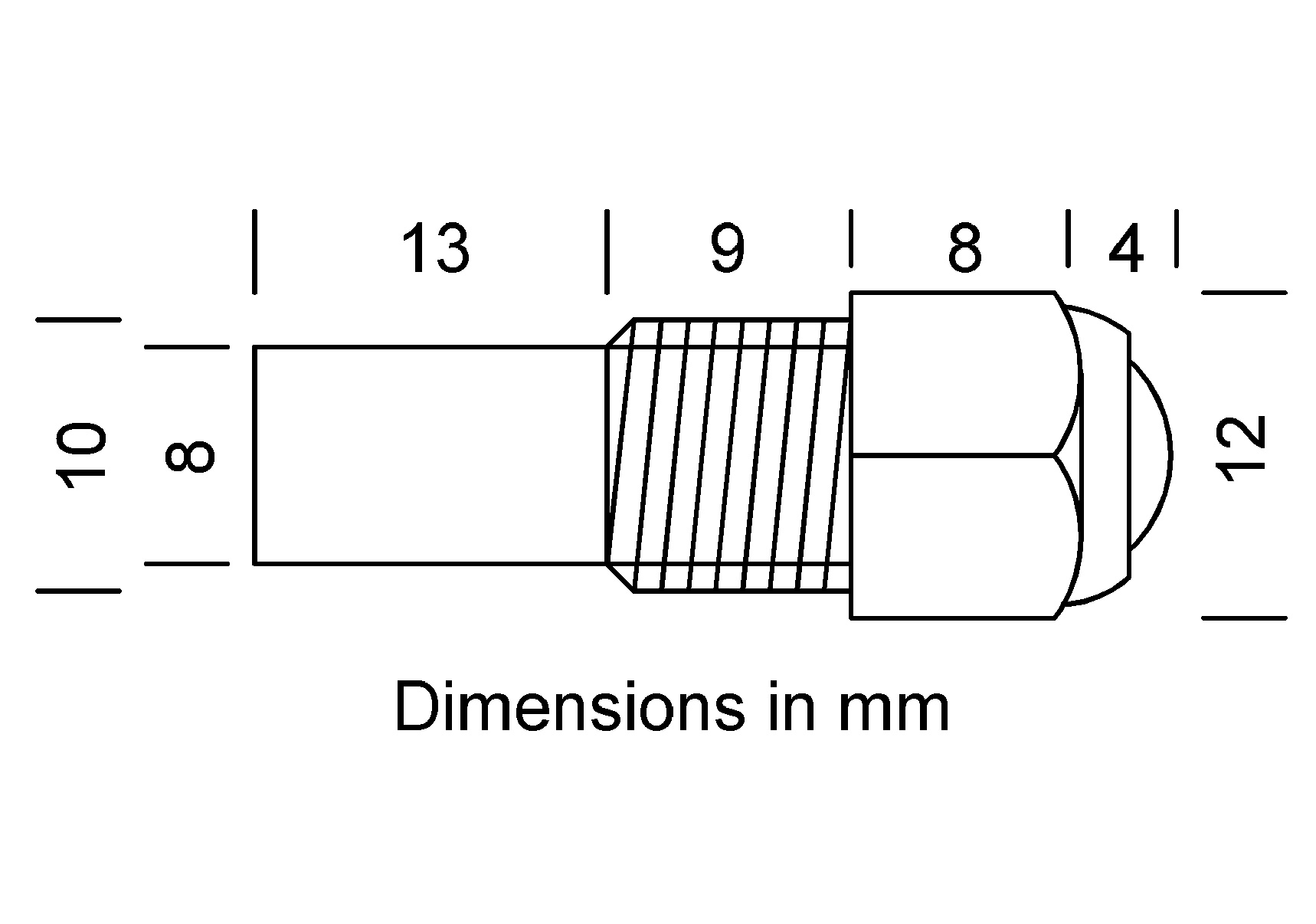

Temperature sensor |
|
Included |
Thread |
|
M10 x 1 |
Meter connections |
|
|
Supply voltage positive |
|
' + ' |
Supply voltage negative |
|
' - ' |
Sensor |
|
' s ' |
Sensor connections |
|
|
Black cable |
|
' - ' |
White cable |
|
' s ' |
* Not including wire & connectors.
