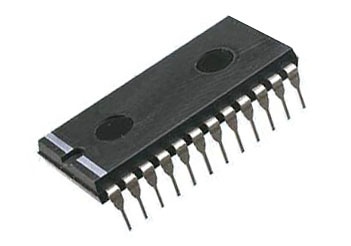

The MC1411 bit rate generator is constructed with complementary MOS enhancement mode devices. It utilizes a frequency divider network to provide a wide range of output frequencies.
A crystal-controlled oscillator is the clock source for the network. A two-but address is provided to select one of four multiple output clock rates.
Applications include a selectable frequency source for equipment in the data communications market, such as teleprinters, printers, CRT terminals, and microprocessor systems.
