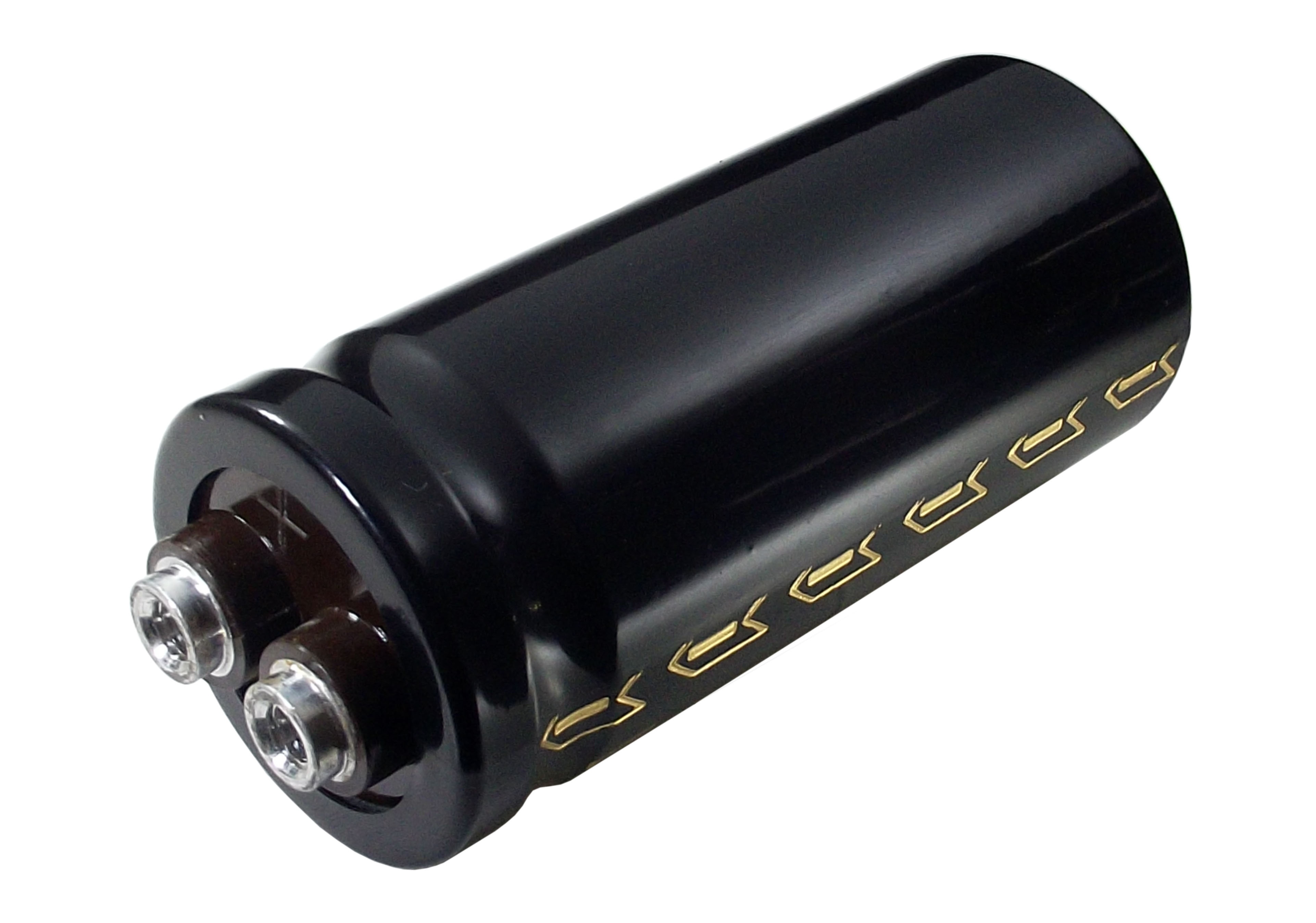

CAPACITOR ELECTROLYTIC COMPUTER GRADE 15000uF 40V
Product Code: 16704802
Product Description:
| Capacitance |
|
15000 uF |
| Rated Voltage |
|
40 VDC |
| Tolerance |
|
± 20 % |
| Polarity |
|
Polar |
| Lifetime |
|
8000 hours |
| Ripple Current |
|
5 A |
| Leakage Current |
|
4.81 mA |
| Equivalent Series Resistance |
|
26 mOhm |
| Operating Temperature |
|
-40 °C to 85 °C |
| Diameter |
|
35 mm |
| Height |
|
70 mm (Less Stud) |
| Terminals |
|
M5 screw connections |
| Mounting |
|
Clamp Mount |
| Series |
|
GMA |
| Manufacturer |
|
F & T |
| Manufacturer Part Number |
|
GMA15304035070 |
| Datasheet |
|
Available |
